Latest Guide to Mobile Phone Screen Assemblies
A cracked phone screen does not always mean the same kind of damage.
Sometimes only the outer glass is broken while the picture and touch function still work normally. In other cases, the display develops black spots, colored lines, flickering, or stops showing an image altogether.
That is why the term phone screen assembly appears so often in the mobile phone repair market.
Instead of replacing only one layer of the screen, a screen assembly combines several important display and touch components into one replacement part. Depending on the phone model and the product version, it may also come with a replacement frame.
Understanding what is included in a screen assembly, how different display technologies work, and what needs to be checked before ordering can make the repair process much easier.
What Is a Mobile Phone Screen Assembly?
A mobile phone screen is made from several layers and components that work together.
The part you see on the outside is only one section of the complete display system. Underneath the glass are the display panel, touch-sensitive components, flex cables, connectors, adhesives, and other parts that allow the phone to display an image and respond to touch.
A mobile phone screen assembly combines the main screen-related components into a replacement unit.
Exactly what is included can vary between phone models and suppliers, so it is always important to check the product description before ordering.
What Does a Complete Screen Assembly Mean?
In the repair industry, the phrase complete screen assembly usually refers to a replacement screen in which the main display and touch components have already been assembled together.
Instead of separating the broken glass from the original display panel and rebuilding the screen layer by layer, a technician can remove the damaged assembly and install a replacement unit.
This can reduce the amount of screen refurbishment work required during a repair.
However, “complete” does not always mean that every small phone component is included. Parts such as the earpiece speaker, front camera bracket, sensors, fingerprint components, metal shields, or other accessories may still need to be transferred from the original phone.
For this reason, the exact contents should always be confirmed for each product.
Screen Assembly vs. Display Panel
A display panel and a screen assembly are related, but they are not always the same thing.
The display panel is the part responsible for producing the image. Depending on the model, this may be an LCD or OLED panel.
A screen assembly normally includes the display panel together with additional components needed for normal screen operation, such as the touch digitizer and front glass.
In practical repair terms, a screen assembly is usually a more complete replacement solution than purchasing only the display panel.

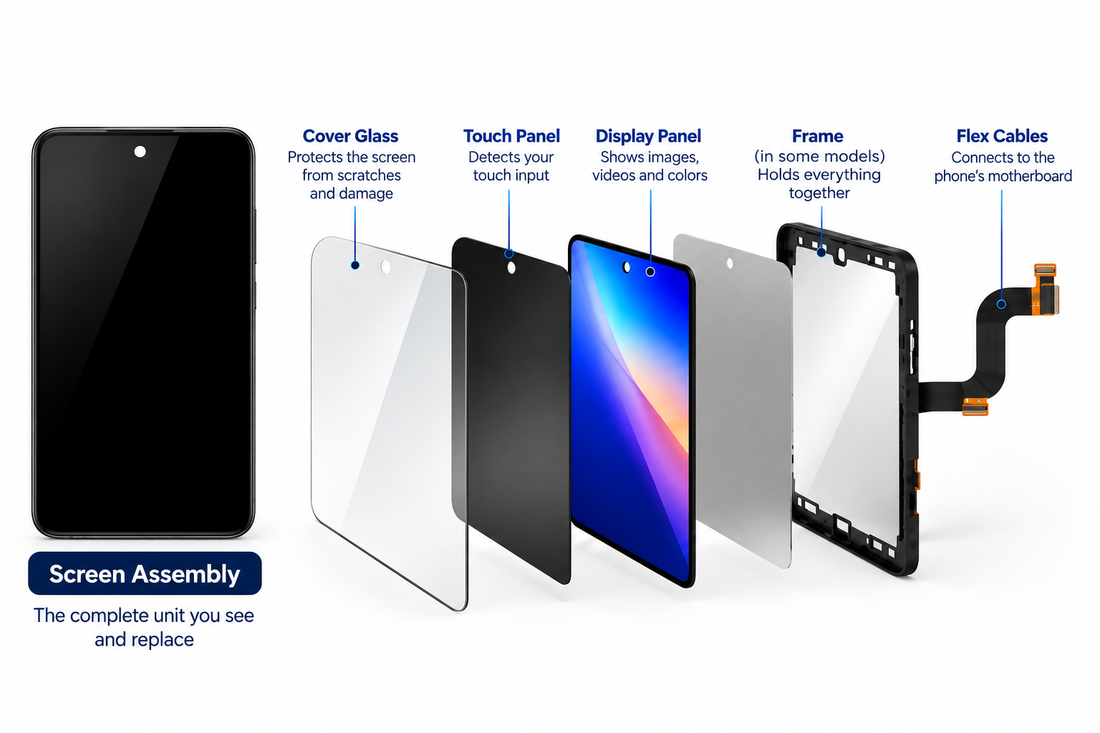

What Parts Are Included in a Phone Screen Assembly?
The construction of a mobile phone screen varies between models, but most replacement screen assemblies contain several basic components.
Display Panel
The display panel produces the image you see on the phone.
Different replacement screens may use different display technologies, including:
- TFT LCD
- InCell LCD
- Hard OLED
- Soft OLED
Each technology has its own construction, thickness, display characteristics, and price range.
The correct choice depends on the phone model, repair requirements, and the type of replacement screen being offered.
Touch Digitizer
The touch digitizer detects finger input and sends that information to the phone.
When the touch layer is damaged, the screen may still display an image but fail to respond correctly when you tap, swipe, or type.
Common touch-related problems include:
- No touch response
- Delayed touch
- Ghost touch
- Certain areas of the screen not responding
- Random touches without user input
On many modern replacement screens, the touch layer is already integrated into the assembly.
Front Glass
The front glass is the outer surface of the screen.
It protects the display underneath and provides the smooth surface that users touch every day.
A phone can sometimes have cracked front glass while the display and touch functions remain usable. In professional refurbishment, technicians may separate the damaged glass and replace only that layer.
That process, however, requires specialized equipment and experience.
For many repairs, replacing the complete screen assembly is a more straightforward approach.
Flex Cables and Connectors
Screen assemblies use flex cables to connect the display and touch components to the phone's motherboard.
These cables are thin and delicate.
A damaged flex cable or connector can cause problems such as:
- No display
- Flickering
- Touch failure
- Intermittent image
- Display colors appearing incorrectly
During installation, connectors should be aligned carefully. Forcing a connector into place can damage both the replacement screen and the phone.
Frame or Midframe Components
Some screen assemblies are supplied with a replacement frame or midframe, while others are sold without one.
This does not mean that one type is automatically better than the other.
They are simply different product configurations designed for different repair methods.
We will explain both versions later in this guide.
Common Symptoms of a Damaged Phone Screen
A broken screen does not always look like a simple crack.
Internal display damage can produce several different symptoms.
Black Spots or Ink-Like Marks
Black spots that appear to spread across the display usually indicate internal panel damage.
They may look like dark circles, ink stains, or irregular patches underneath the glass.
Even if the outer glass is not badly broken, the internal display panel can still be damaged by impact or pressure.
In many cases, these black areas become larger over time.
No Display or Black Screen
A phone may still turn on, vibrate, make sounds, or receive notifications while the screen remains completely black.
This can be caused by a damaged display, connection problem, flex cable issue, or another internal fault.
Before replacing the screen, technicians normally check whether the phone itself is functioning correctly.
A black screen does not automatically mean that the display is the only faulty component.
Vertical or Horizontal Lines
Colored vertical or horizontal lines are another common sign of display damage.
They may appear after:
- Dropping the phone
- Bending the device
- Applying pressure to the display
- Water damage
- Internal panel failure
Depending on the severity of the damage, the lines may be permanent or appear intermittently.
Abnormal or Distorted Colors
A damaged screen may show colors that no longer look correct.
Possible symptoms include:
- Green tint
- Pink tint
- Purple patches
- Washed-out colors
- Incorrect brightness
- Uneven display areas
Color distortion can be related to panel damage, flex cable problems, or other hardware issues.
Unresponsive or Abnormal Touch
Sometimes the image looks normal but the touch function does not.
A user may find that one part of the screen works while another area does not respond at all.
Other phones may develop ghost touch, where the device registers input even when nobody is touching the screen.
If the problem is caused by the touch layer inside the screen assembly, replacing the screen may restore normal operation.
Screen Flickering
Flickering can appear as rapid brightness changes, flashing, or an unstable image.
It may be caused by screen damage, a loose connection, panel failure, or problems elsewhere in the phone.
A proper diagnosis should be made before deciding which component needs replacement.
Why Are Phone Screen Assemblies Widely Used in the Repair Market?
Complete screen assemblies are common because they simplify many repair jobs.
For repair shops, distributors, and individual technicians, they provide a practical way to restore damaged devices without rebuilding the original screen layer by layer.
Cost-Effective Screen Repair
When the phone itself is still in good working condition, replacing the damaged screen can be more economical than replacing the entire device.
This is especially relevant for newer or higher-value smartphones.
The final repair cost depends on the phone model, screen technology, part quality, labor, and local repair prices.
Convenient Installation
A replacement screen assembly already combines several important components.
This means the technician does not normally need to laminate a new piece of glass onto a damaged display panel before installation.
That can make the repair process more manageable.
The installation is still a technical job, however. Modern smartphones often require careful disassembly, adhesive removal, cable transfer, sealing, testing, and reassembly.
Simplifies the Repair Process
Screen refurbishment and screen replacement are two different types of repair work.
Refurbishing a damaged original screen may involve separating glass, removing adhesive, laminating new glass, removing bubbles, and testing the finished display.
Replacing the complete assembly avoids many of those steps.
For repair businesses handling a large number of devices, this can make workflow more predictable.
Helps Save Repair Time
Time is important in a repair shop.
Using a pre-assembled replacement screen can reduce the number of procedures required before the device can be tested and returned to the customer.
The actual repair time still depends on the phone model.
Some devices can be opened relatively quickly, while others require more disassembly before the screen can be removed.
Reduces the Need for Complex Screen Refurbishing
Professional screen refurbishment can require equipment such as:
- Screen separators
- Heating equipment
- OCA laminating machines
- Vacuum laminators
- Bubble removal machines
- Cleaning tools
These tools are useful for businesses specializing in screen refurbishment.
However, not every repair shop operates that type of production process.
For many technicians, complete replacement assemblies provide a more practical alternative.
Common Types of Mobile Phone Screen Assemblies
Replacement phone screens are available in several display technologies.
The exact options depend on the phone model.
TFT LCD Screen Assemblies
TFT is a common LCD display technology used in many replacement screens.
TFT replacement screens are often positioned as an economical repair option.
Because LCD technology uses a backlight, the structure and display characteristics are different from OLED.
Depending on the device and product grade, differences may be noticeable in areas such as:
- Brightness
- Contrast
- Black levels
- Viewing angles
- Screen thickness
- Power consumption
A TFT replacement screen must still be specifically designed for the phone model in which it will be installed.
InCell Screen Assemblies
InCell technology integrates touch functionality more closely with the LCD display structure.
This allows the screen to be thinner than some traditional LCD designs.
InCell replacement screens are widely available for many smartphone models and are often used when customers or repair businesses want an LCD-based replacement with a relatively slim construction.
Display performance can vary between manufacturers and product grades, so the term “InCell” alone does not guarantee identical quality across all suppliers.
Hard OLED Screen Assemblies
Hard OLED uses an OLED panel built on a rigid substrate.
Unlike LCD, OLED pixels produce their own light, so a separate backlight is not required.
This allows OLED screens to produce deep blacks and strong contrast.
Hard OLED replacement screens are available for many phones that originally use OLED displays.
The rigid structure, however, means that Hard OLED and Soft OLED are constructed differently.
Soft OLED Screen Assemblies
Soft OLED uses a flexible OLED substrate.
This allows the panel to be thinner and more flexible than Hard OLED.
Soft OLED replacement screens are commonly used for phones where a flexible display structure is desirable.
Because manufacturing methods, materials, controllers, and quality standards differ between suppliers, two Soft OLED screens are not necessarily identical simply because they use the same technology name.
When sourcing replacement screens, technical specifications and actual quality control remain important.
Screen Assemblies With Frame and Without Frame
Replacement screens are commonly available in two configurations:
with frame and without frame.
Both are normal products in the mobile phone repair market.
The difference is mainly how much of the phone's structural frame is already included with the replacement screen.
Screen Assembly Without Frame
A screen assembly without frame includes the main screen components but does not come pre-installed in a new midframe or display frame.
During the repair, the technician normally removes the damaged screen from the original frame and installs the replacement screen onto that existing structure.
This repair method requires careful cleaning and preparation of the original frame.
Old adhesive, glass fragments, dirt, or deformation should be removed before the new screen is installed.
Correct alignment is also important.
Screen Assembly With Frame
A screen assembly with frame comes with the replacement display already installed or assembled with a compatible frame or midframe.
During installation, some original phone components may need to be transferred from the old assembly to the new frame.
The exact parts that need to be transferred depend on the phone model.
These may include brackets, speakers, buttons, sensors, antennas, shields, or other internal components.
Why Are Both Versions Available?
Repair businesses use different methods.
Some technicians prefer to keep the original frame when it is still in good condition. Others prefer a screen that is already installed in a replacement frame.
Stock planning, repair workflow, technician experience, customer requirements, and phone condition can all influence which version is used.
For that reason, both screen assemblies with frame and screen assemblies without frame continue to be widely used.
The important point is to confirm which version you are ordering before beginning the repair.
What to Check Before Ordering a Replacement Screen Assembly
A screen can look correct in a product photo and still be incompatible with the phone.
Checking the details before ordering helps avoid unnecessary returns and installation problems.
Confirm the Exact Phone Model
Do not rely only on the marketing name of the phone.
For example, a Samsung Galaxy model may have several regional or technical variants.
Checking the full model number gives a more accurate way to confirm compatibility.
Depending on the manufacturer, model numbers may look similar to:
The exact code should be matched with the replacement part whenever possible.
Confirm the Screen Technology
Check whether the replacement screen is:
- TFT
- InCell
- Hard OLED
- Soft OLED
Different screen technologies may provide different display characteristics.
They may also have different requirements related to thickness, brightness, fingerprint operation, and device compatibility.
Do not assume that every replacement screen for the same phone is constructed in the same way.
Confirm Whether the Product Includes a Frame
Before ordering, check whether the listing says:
With Frame
or
Without Frame
This affects the installation process.
If you are purchasing for a repair business, keeping both versions in stock may also make sense depending on the types of repairs your technicians handle.
Check Touch Function Compatibility
A replacement screen should be tested before final installation.
Before applying permanent adhesive or fully reassembling the phone, technicians normally check:
- Image quality
- Touch response
- Brightness
- Color
- Connector fit
- Dead areas
- Ghost touch
Testing first makes it easier to identify a problem before the repair is completed.
Check Fingerprint Unlock Compatibility
Fingerprint compatibility deserves special attention because fingerprint systems vary between phones.
Some devices use:
- Rear fingerprint sensors
- Side-mounted fingerprint sensors
- Optical under-display fingerprint sensors
- Ultrasonic under-display fingerprint sensors
When the fingerprint sensor is built underneath the display area, the type and construction of the replacement screen can affect compatibility.
Some replacement screens support the original fingerprint function, while others may have limitations or require calibration.
This varies by model and screen type.
For that reason, fingerprint support should always be confirmed in the product specification rather than assumed from the words “LCD” or “OLED” alone.
Frequently Asked Questions About Phone Screen Assemblies
What Is Included in a Phone Screen Assembly?
A typical phone screen assembly includes the display panel, touch layer, front glass, flex cables, and connectors.
Some versions also include a frame or midframe.
The exact contents vary by phone model and product, so the listing should always be checked carefully.
Does a Screen Assembly Include Touch Function?
Most modern complete replacement screen assemblies include touch functionality.
However, product construction can vary.
Always confirm that the replacement part includes both the display and digitizer before ordering.
What Is the Difference Between TFT, InCell, and OLED?
TFT and InCell are LCD-based display technologies and normally use a backlight.
OLED uses self-emitting pixels and does not require the same type of backlight structure.
Hard OLED and Soft OLED are both OLED technologies but use different substrate constructions.
Each type has different characteristics, and availability depends on the phone model.
What Does “With Frame” Mean on a Replacement Screen?
“With frame” means the replacement screen is supplied together with a compatible display frame or midframe.
Some original components may still need to be transferred during installation.
What Does “Without Frame” Mean?
“Without frame” means the replacement display is supplied without a new frame.
The technician normally installs it into the phone's existing frame after removing the damaged screen and old adhesive.
Can a Replacement Screen Support Fingerprint Unlock?
It depends on the phone model, fingerprint technology, replacement screen type, and product design.
Some screens support the original fingerprint function, while others may have limitations.
Always check the specifications for the specific screen before ordering.
Can a Phone Screen Assembly Be Replaced Without Special Equipment?
A complete screen assembly usually requires less specialized equipment than professional glass-only refurbishment.
However, screen replacement still requires proper repair tools and technical experience.
Opening the phone, disconnecting the battery, removing adhesive, transferring components, connecting the new display, testing, and sealing the device all need to be done carefully.
Professional installation is recommended for users without repair experience.
Final Thoughts
A mobile phone screen assembly is more than the piece of glass visible on the front of a phone.
It combines several components that work together to produce the image, detect touch, and connect the display to the device.
When choosing a replacement screen, the most important details to check are straightforward:
phone model → screen technology → frame configuration → touch compatibility → fingerprint compatibility
TFT, InCell, Hard OLED, and Soft OLED all have a place in the replacement screen market. Likewise, screen assemblies with frame and without frame are both standard repair options.
The right replacement part is the one that matches the device, the repair method, and the required specifications.
Taking a few minutes to confirm those details before installation can prevent many of the most common screen replacement problems.
